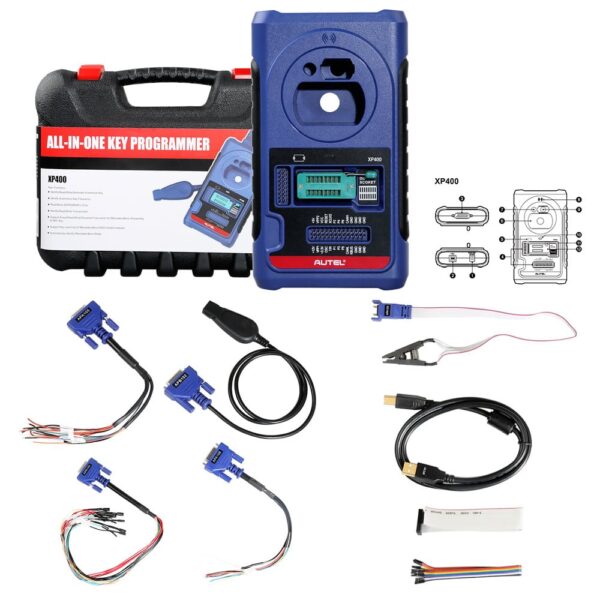

The XP400Pro – Advanced All-in-One Key Programmer
2. One Year Free Update Online on Autel Official Website
3. Could Be Used with Autel IM508 and Autel IM608, Also IM100 and IM600 as well
(Notice: XP400Pro is compatible with IM100 / IM600. The only thing the IM100 and IM600 will not have when used with XP400Pro is the 4 channel Labscope software and AutoAuth)
4. Supports Key Renewal on 11 Key Types with Additional Adapters – IMKPA Key Programming Accessories Kit
5. Please note that the product does NOT support Read/Write IC Card function. The “IC Card Induction Area” was also removed from XP400 Pro
Description:
Autel XP400Pro is a replacement for XP400. It adds more functionality for BMW, Mercedes-Benz, as well as EEPROM reading. With the new protocols, the end-user will be able to read over 2000 (chips, components, devices) types including EEPROM and MCU Read, additional Odometer Read/Write, and more. Also, added functions for EWS3, W209, NEC, and more.
Why You Need XP400 Pro?
1. Expanded EEPROM functions for more component access
2. 170+ types Odometer component reading functions
3. 180+ Immobilizer ECU component types
4. 40+ Engine ECU component types
5. 2000+ MCU component types
6. 440+ EEPROM component types
7. Compatible with IM508 and IM608
8. Includes 1-Year Warranty
9. Free Software Updates for Life of Tool
ADVANCED KEY PROGRAMMING VEHICLE COVERAGE
when combined with the XP400PRO and the IM508/608
Benz
* One-tap Key Programming via OBD
* 3rd Generation IMMO CAN-Line/ K-Line Add Key, All Key Lost
BMW
* Smart IMMO Programming (support EWS3/ 4, CAS 1/ 2/ 3/ 4, FEM/ BDC)
* Add Key/All Key Lost
Volkswagen/ Audi
* One-tap Online Programming
* Add Key/All Key Lost Via OBD for 2013 – 2020 Models
GM
* Read IMMO Password, Add Key/ All Key Lost up to 2020
Ford
* Add Key/All Key Lost (No PIN Needed) up to 2020
Mazda
* Add Key/All Key Lost (No PIN Needed) up to 2020 FCA
* Read IMMO Password, Add Key/All Key Lost up to 2020
Renault
* Add Key/All Key Lost (No PIN Needed) up to 2020
LandRover/Jaguar
*Add Key/All Key Lost up to 2019
Volvo
* Semi-smart Key Learning via OBD up to 2018
* Smart/Blade/Fobik Key Learning via Dump
Powerful IMMO Functions
1. Auto Detect Make/ Model/ Year/ System
2. Read PIN (All Key Lost)
3. Key Learning
4. IMMO ECU Reset/Adaption
5. IMMO ECU Refresh/Coding
6. Remote Learning
7. AUDI Q5/ A4/A5 2015-2017 Key Learning
8. VW MQB Key Learning
9. BMW FEM/BDC Key Learning and Adaption
10. BMW CAS4 Key Learning and Adaption
11. Mercedes Key Learning
12. 2015-2018 Land Rover & Jaguar write key via dump
13. Volvo Smart Key Learning/ knob-style smart key
Advanced Programming Functions
1. EEPROM Read/Write
2. MCU Read/Write
3. Key Programming
4. Mercedes Key Read/Write
5. Remote Frequency Detect
Comparison of XP400 vs XP400 Pro vs VVDI Pro
Features | XP400 | XP400PRO | VVDIPROG |
EEPROM read/ write | 330 chip types | 445 different chip types newly added support (AM29FXXX seriesMB29FXXX series) | 429 different chip types |
MCU read/ write | 1541 chip types | 2067 chip types | 1758 different chip types |
Engine ECU read/ write | 40 chip types | 41 chip types add write support for SIMTEC76(AM29F800BB)_WRITE | Engin ECU read (74 types) |
Immoblizer ECU read/ write | 168 chip types | 181 chip types | 171 chip types |
Odometer read/ write | read odometer module 9 types | read odometer module 171 types (update in July) | read odometer module 171 types |
Airbag read/ write | read airbag module 5 types | read airbag module 5 types | read airbag module 54 types |
Frequency detection | 315/ 433/ 868MHz | 315/ 433/ 868MHz | N/A |
Key read/ write | support | support | N/A |
Unlock key | N/A | support 11 key types (Audi/ BMW) | 6 key types |
Write key via dump | Mitsubishi, suzuki, fiat, landrover, Juguar | Mitsubishi, suzuki, fiat, landrover, Juguar | Support 40+ vehicle makers |
Easy to use/ stability | 1. menus are too value and can’t select intuitively 2. with high-definiton wiring diagrams (not sufficiently covered) | 1.Stability of key read/ write, chip read/ write, IR key read/ write are greately enchanced. 2.menus are too vague and can’t select intuitively 3.with high-definiton wiring diagrams (not sufficiently covered) | 1.menus are clear and easy to use 2.with high-definiton wiring diagrams (sufficiently covered) 3.high stability of chip read/ write |
XP400Pro Adds Support for Following Chips:
EEPROM–>>AMD–>>AM29FXXX series chip
EEPROM–>> FUJITSU–>> MB29FXXX series chip
EEPROM–>> ST–>> M29FXXX series chip
Engine control module–>> ST–>> M29FXXX series chip
IMMO–>> BENZ–>> ESL_W209_W906(Motorola) read/write/erase function
IMMO–>> BMW–>>EWS3 module read/write function
REMOTE_RENEW (renew key)–>> NEC–>> V51 and V5 chip read/write/erase
XP400 Pro Adds Support for Following IMKPA Accessories (Need to Buy IMKPA Accessories Separately)
APB113 PCF79XX adaptor board
APB114 EWS3 adaptor board
APB115 NEC adapter board
APB118 NEC ELV adaptor board
APB119 TB28FXXX adaptor board
APB120 TMS370 adaptor board
APB121 AM29FXXX adapter board
APB122 AM29FXXX adaptor board1
APB123 AM29FXXX adaptor board2
APB126 M35080/D80 adaptor board
APB127 MC68HC0(7)05BXX adaptor board
APB128 MC68HC05X32 adaptor board
